Fine Time for Fineline at Glastonbury 2015

	Photo: Louise Stickland

Glastonbury Festival of Contemporary Performing Arts, arguably the world's best known and highest profile festival presented another fantastically diverse melting pot of music, performance, entertainment, culture and fun from around the globe descending on the massive Worthy Farm site at Pilton in Somerset, UK.

Bristol-based lighting and visuals specialist Fineline Lighting renewed their excellent and fertile long term working relationship with the event -- at least 24 years to date -- and supplied lighting for the Acoustic Stage, Astrolabe Theatre, Cabaret and Circus venues, and also the WOW stage in the Silver Hays dance area featuring some of the best underground DJs.

Says managing director Rob Sangwell: "We all love working on Glastonbury and imbibing the spirit of the festival, and are very proud of our history with the event. I have seen many changes over the years, all for the better. The excellent line-ups plus the clamour to perform and be part of the community makes it even more special"

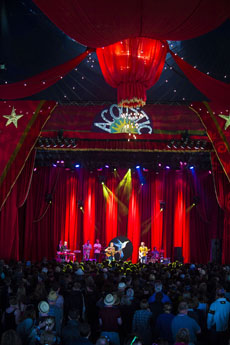

The Acoustic Stage also yielded one of the most civilized and chilled backstage areas in a very convenient location right at the heart of the action.

Fineline has built up the décor element of this stage over the years and especially more recently to include lush red drapes, and masking around the stage and in the ceiling, which really enhances the theatricality of the space.

This year, the Fineline team designed and custom fabricated a special chandelier with 40 spiral filament lamps to complete these deco elements, which looked very cool.

With an impressive line-up of both established and breaking artists keen to show their talent in an acoustic environment, stage lighting was designed by Sangwell and Fineline site crew chief Stu England based on three trusses spanning the 40' x 22' ground support system also installed, trimmed at a decent 9.5m.

This was rigged with 10 bars of PAR 64s and some ACLs, together with Martin MAC Quantum Spots on drop bars on the back and mid trusses. Quantum Wash moving lights on the mid truss were used to create the general stage washes, while MAC 101s on the back truss served as effective tab "warmers," highlighting the sumptuous red drapage.

On the mid truss, MAC Aura XBs and XB Plus's provided the beam work and rear key lighting, supported by Robe LEDBeam 100s for effects.

The overall lighting reinforced the desired theatrical style ambience, although all genres of music were embraced over the weekend, from rock to blues, jazz to soul, folk to funk.

Avolites dimming and a Sapphire Touch control completed the lighting package, and joining England and Sangwell on the crew were Callum Ostell and Sam Kenyon. They also accommodated guest lighting designers and caught up with a lot of industry friends who passed through this popular venue.

Lighting in the Astrolabe theatre tent was coordinated by Hal Himsworth, resident lighting designer for several years, with a great line-up of eclectic artists -- from dance to physical theatre. With numerous specific requirements for various acts, the pace was relentless and virtually non-stop for 12 hours between performances and rehearsals.

A substantial amount of trussing was rigged in the roof to create a usable theatre grid and most of the base washes were created by static LED wash lights.

The rig incorporated all the performer specs, together with specials and extras as needed and featured about 80 fresnels, profiles, floods, and PARs which were re-worked and often refocussed and re-gelled between acts -- true theatrical style.

An Avo Pearl Expert with a Wing ran the lights, with Avolites dimming throughout.

Lighting designer James Loudon is another Glastonbury regular who has weaved his magic in this space for close to 20 years. Another vibrant line up saw a host of aerial artists, pole, trapeze, hoop and silk acrobatics, balancing acts, etc.

The idea was to make the venue almost in the round, so lighting had to fill 12m of headroom and a 3D space about 8sqm.

The upstage truss was horizontally hinged at approximately 45 degrees along the sides to form an arc around the stage, supported from this truss, at the mid stage ends, and were vertical trusses for side lighting positions.

Additional lights were on the floor and rigged to the tent king poles and flown trusses suspended from the king poles and cupola. A mix of Robe 600E Spots and Chauvet Rogue R2 wash lights on the deck were combined with LED battens serving as knee kickers. These were joined by a good selection of generics -- PARs, profiles, and fresnels.

All the shows ware rehearsed, pre-programmed, and cue-stacked on the console -- in another gruelling schedule -- so everything triggered at the right times, with an Avo Sapphire Touch console and Avolites dimming.

Loudon was joined by techs Charlie Denny and Johnny Westall.

Just across the field in the single king pole square shaped Cabaret tent, Fineline's Wingnut designed lighting and was joined by Alex Shenton, Ben Desousa, and Croat.

Fixtures were rigged on a 4m x 2m box truss built around the king pole to give front-of-house and audience positions, and on two trusses over the stage, with two vertical trusses on the downstage edge for booms.

Fixtures compromised about 60 PARs, 20 ETC Source Four profiles, for gobo projections plus fresnels. The moving lights were 10 Chauvet Rogue R2 Beams and eight Rogue R2 washes.

Wingnut also created some really cool custom paper globe lanterns internally lit with special LED rods which were strung up throughout the space adding depth and a bit of visual scenery to the otherwise black void above the audience. The company says these look set to become a regular Glastonbury feature. He also produced a custom mirror ball installation at the rear of the stage.

The Wow Stage lighting was designed by James "Chimpy" Harrington one of the creative mainstays of Motion, Bristol's most cutting-edge clubbing experience.

He used a variety of equipment, including 10 Chauvet R2 beams, six Robe LEDBeam 100s, eight 2-lites, Atomic strobes, and Chauvet Nexus 7x7 panels, PARs, and ACLs and also lit the exterior of HMS Wow with PARs and MBIs and ensured the funnel billowed with smoke courtesy of Gem Roadie smoker below.
