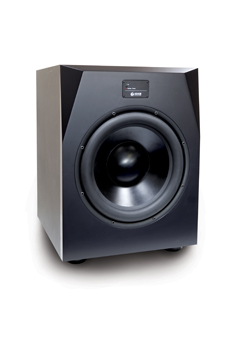

ADAM Audio Debuts New Sub15 SubwooferThe new Sub15 from ADAM Audio is a powerful subwoofer capable of easily extending the frequency range of main and midfield monitors down to 20Hz. The rugged 15" woofer is made of an exceptionally rigid aluminum membrane and driven by two powerful magnets and a 100mm voice coil. The Sub15 combines exceptional transient response with an efficient low frequency performance. A high-powered and undistorted sound pressure output of 112dB maximum SPL at one meter makes it the perfect subwoofer for mid-sized and larger control rooms. With 1,000W (RMS) power, the Sub 15's PWM amplifier has an efficiency factor of nearly 90%, which allows it to handle critical musical passages with sudden peaks without distortion or overheating. The downward firing bass port has been specially designed with generous dimensions and rounded edges to cancel port noise. The Sub15 is equipped with a volume control (-60dB to +6dB) and crossover frequency control (50 - 150Hz) to adjust the sound for different room situations and individual tastes. Satellite speakers can either be driven full range or high pass filtered at 85Hz. A phase reverse switch is provided to deal with unfavorable phase relationships between the satellites and the subwoofer, particularly in the crossover frequency range. To ensure maximum connectivity, the Sub15 features both balanced (XLR) and unbalanced (RCA) input/output connectors on the rear control panel. ![](/std_images/blank.gif)
|
