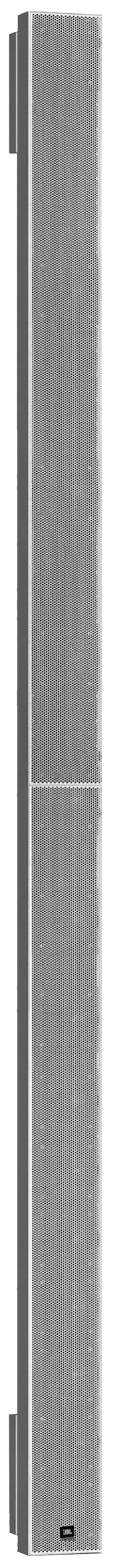

Harman's JBL Professional Introduces Intellivox HP-DS370 Active Beam Shaping Loudspeaker ArrayHarman's JBL Professional is introducing the new Intellivox HP-DS370 active beam shaping loudspeaker array, offering high output and unmatched directivity control for a loudspeaker in its category. The HP-DS370 measure 3.7m in height and has an output capability of 105dB at 30m, along with a frequency response to 18kHz. The horizontal dispersion is 100 degrees and the typical throw is around 50m, which means an area of approximately 2,150sqm can be covered by a single device. The HP-DS370 is a modern update to the classic Intellivox DS1608, which was the world's first commercially available beam-shaping high-power loudspeaker array. The HP-DS370 looks similar to the 1608 but that's where the similarity ends. The unit now has all the electronics built into the loudspeaker enclosure, a highly efficient power supply, and class D amplification. Combine this with the fact that the unit is also IP55 rated and the company says it's already proving to be a hit with systems integrators and clients. The new electronics mean that power consumption and therefore the lifetime costs are reduced. The HP-DS370 features 14 individual, high-efficiency, 6.5" loudspeakers arranged in accordance with JBL Intellivox's patented algorithm, plus two coaxially mounted compression drivers for extended frequency response. It also utilizes Intellivox's exclusive DDS beam-shaping capability, which uses complex room mapping to provide complex directivity patterns. This not only results in even SPL coverage but DDS also ensures that the frequency response is consistent throughout the space. "Since the introduction of beam shaping loudspeakers in 1999, the Intellivox high-power models have been specified to solve the problems of speech intelligibility and musical reinforcement in highly reverberant spaces and performance spaces. We really have done everything from railway stations to opera houses with the high-powered Intellivox products," said Nick Screen, Intellivox sales director, JBL Professional. "The Intellivox HP-DS370 combines sonic excellence, unmatched directivity control, even SPL coverage, and low lifetime costs, making it a great option in terms of sound quality and overall system cost." ![](/std_images/blank.gif)
|
