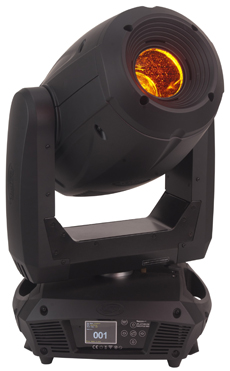

Elation Platinum Profile LED Market's First Entry-Level LED Moving Head with Automated Framing Shutters

Elation Professional announces the launch of the Platinum Profile LED, the market's first entry-level LED moving head profile with framing shutters, the company says.

Using a 180W LED engine that gives a level of power comparable to a 575W discharge lamp, the fixture's flexible 4-blade rotating framing system allows the beam to be shaped and angled as required for precise highlighting of set pieces and performers, or can be used to create projection or mid-air effects.

Individual control of each blade position and angle allows for a controlled field of light with less light spill while rotation of the complete framing module permits projection at any angle, the company says. Pre-programmed blade macros are included that offer a series of shape and movement effects.

The fixture's economical 180W LED engine (6,500K, >85CRI, 20,000 hours) emits 9,000 total lumens of flicker-free output while the fixture consumes a total of 250W of max power. Its wide array of uses include special event and AV rental applications, broadcast and television, theatres, houses of worship, or any event or venue that requires an affordable profile luminaire with framing.

The product includes two color wheels with 11 total dichroic colors including UV and CTO. A variety of useful graphics are housed in two gobo wheels, one with 7 rotating, interchangeable gobos and the other with 7 static-stamped gobos.

A host of effects can be created via a 3-facet rotating prism, the company says, with prism macros for quick programming, as well as motorized focus and mechanical iris. The fixture offers electronic dimming and strobe, and a frost filter is included when the moment calls for a softer beam. The beam can then be further altered in combination with the 4-blade shutter system.

The product is controllable in 3 DMX modes (24/26/36 channel) and a 6-button touch control panel with full-color 180° reversible LCD menu display makes for easy navigation through DMX and manual settings. The fixture includes a host of other features like Neutrik 5-pin DMX In/Out and Powercon In/Out connections, along with Art-Net support via RJ45 Ethercon In/Out connections. The Platinum Profile LED is also RDM ready and houses a universal switch-mode power supply for use anywhere in the world, the company says.

See Elation Professional at PLASA Focus: Orlando, February 17 - 18, 2015.
